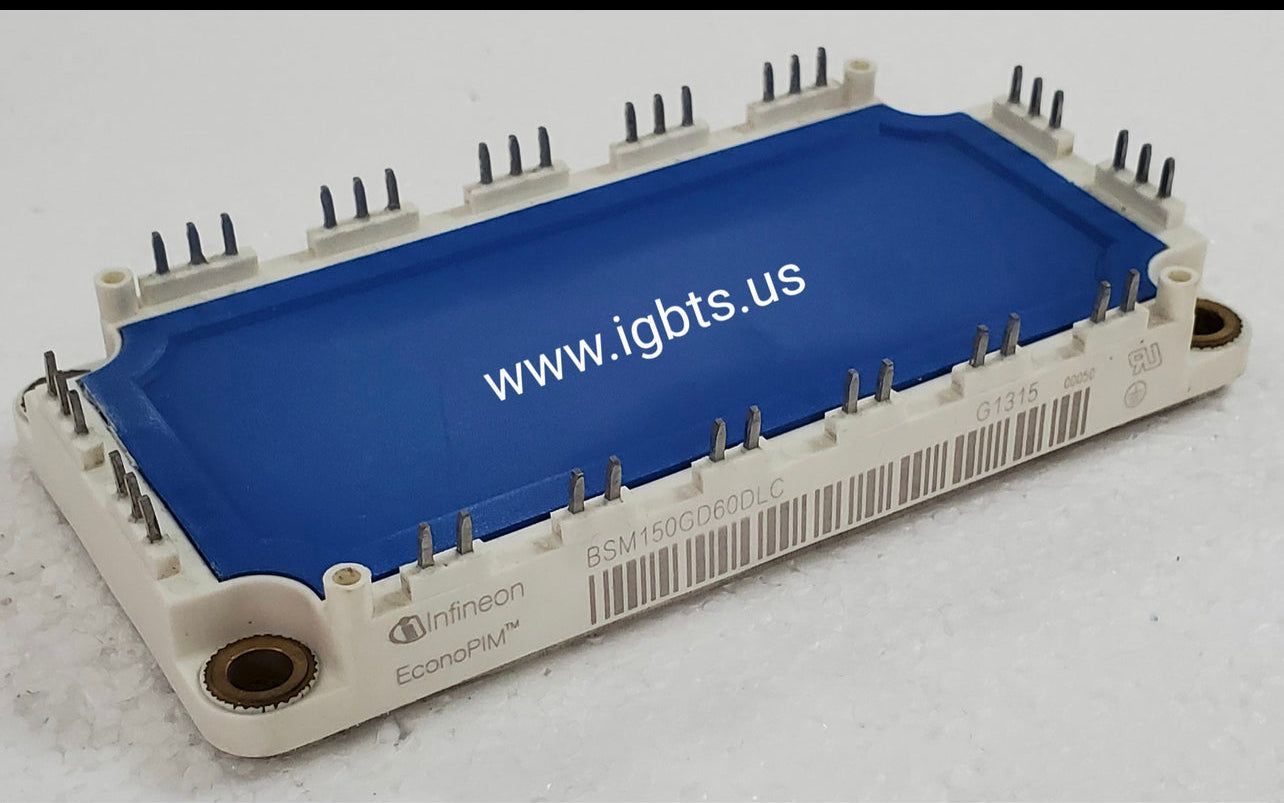

The Infineon BSM150GD60DLC is a 150A, 600V dual IGBT module housed in the compact DLC package, engineered for demanding power conversion applications where switching efficiency and thermal performance are critical. Featuring Infineon's field-proven trench/fieldstop IGBT cell technology, this module delivers low collector-emitter saturation voltage (V_CE(sat)), soft-switching characteristics, and co-packaged freewheeling diodes optimized for inverter duty. Its robust short-circuit withstand capability and low thermal resistance make it a reliable choice for designs requiring consistent performance across wide load ranges and ambient temperature extremes.

The BSM150GD60DLC is widely deployed in industrial AC motor drives, servo amplifiers, UPS systems, solar inverters, and induction heating equipment. Its 600V blocking voltage and 150A continuous current rating suit three-phase inverter bridge legs and half-bridge topologies common in sub-megawatt drive platforms. OEMs and end-users in material handling, HVAC, pumping, and renewable energy sectors rely on this module for its balance of switching speed, conduction loss, and proven field reliability in continuous-duty industrial environments.

Quick Reference: BSM150GD60DLC

Key Features of the BSM150GD60DLC:

• 600V V_CES and 150A I_C rating suitable for high-current half-bridge and inverter-leg configurations
• Low V_CE(sat) trench/fieldstop IGBT technology minimizes conduction losses at rated current
• Integrated fast-recovery freewheeling diodes co-packaged per switch position for reduced parasitic inductance
• Short-circuit rated with defined withstand time, supporting standard gate drive protection schemes
• Low thermal resistance junction-to-case (R_th(j-c)) enabling high power density with standard heatsink mounting
• DLC package footprint with industry-standard screw-terminal and baseplate interface for straightforward retrofits and new designs

With a factory lead time of 99 weeks, the BSM150GD60DLC presents a significant procurement challenge for maintenance teams facing unplanned equipment failures and for OEMs managing production continuity. New production orders placed today won't deliver for nearly two years, making distributor stock the only practical path to keeping critical systems online. ATI Accurate Technology maintains inventory of hard-to-find, long-lead-time, and obsolete Infineon IGBT modules precisely for these situations—providing engineers and buyers with an immediate, verified source when factory channels cannot respond in time.

ATI Accurate Technology is located in Palmetto, Florida, and stocks new OEM power semiconductors including IGBT modules, thyristors, diodes, and rectifier assemblies from leading manufacturers. Orders placed before 5PM EST ship same-day. Volume pricing is available for MRO stocking orders and OEM production builds. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss application support for the BSM150GD60DLC.
