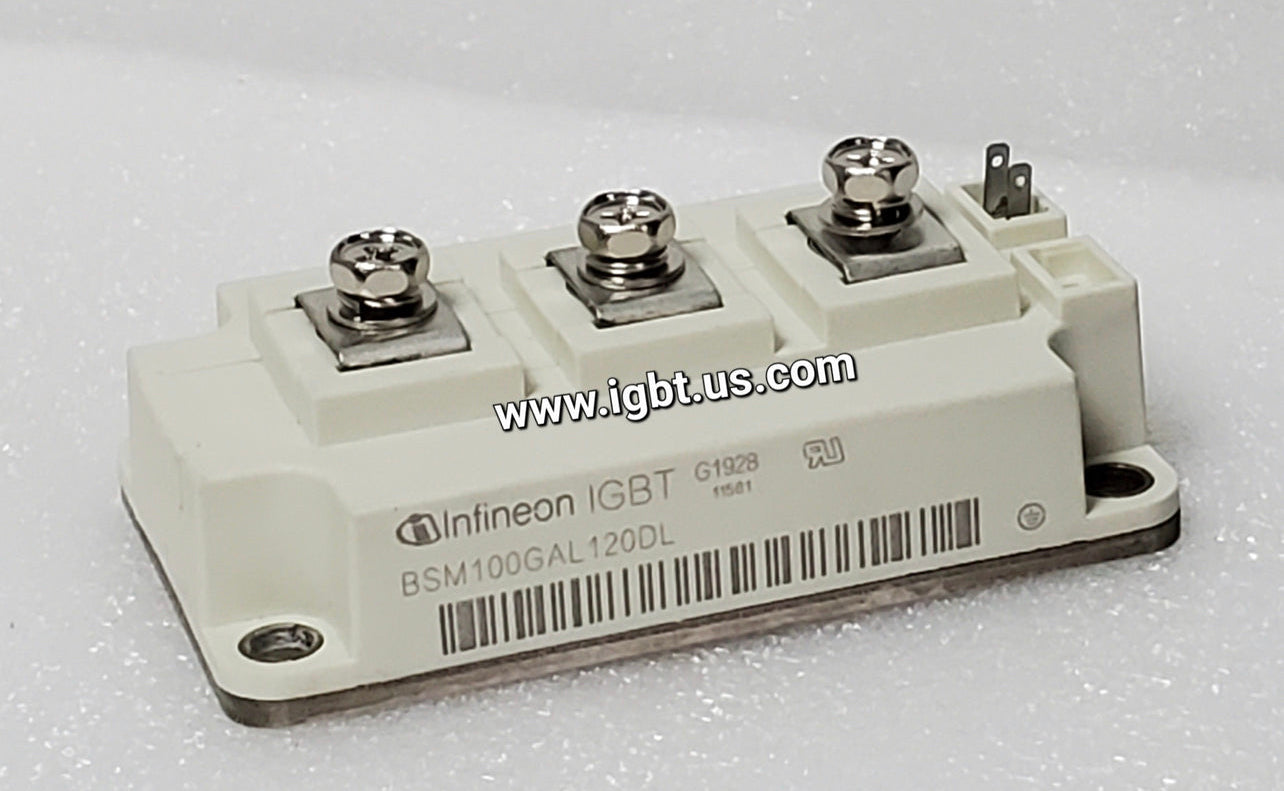

The Infineon BSM100GAL120DL is a 100A, 1200V IGBT module in the GAL (low-inductance) dual configuration, engineered for high-frequency, high-efficiency power switching. Built on Infineon's field-proven IGBT technology, this module integrates freewheeling diodes and delivers a low V_CE(sat) profile optimized for reduced conduction losses. Its robust construction and thermal characteristics make it a reliable choice for engineers designing or maintaining industrial power electronics where switching performance and thermal management are critical design constraints.

The BSM100GAL120DL is widely deployed in variable-speed motor drives, solar and wind inverters, industrial UPS systems, induction heating equipment, and traction power converters. Its 1200V blocking voltage and 100A current rating cover a broad range of medium-power applications where a compact, thermally efficient module is required. The low-inductance GAL package minimizes stray inductance in the commutation loop, reducing voltage overshoot and enabling cleaner switching transitions at higher frequencies — a key advantage in precision drive and energy conversion systems.

Quick Reference: BSM100GAL120DL

Key Features of the BSM100GAL120DL:

• 1200V V_CES and 100A I_C rating suitable for medium-power industrial converter topologies
• Low-inductance GAL package design minimizes commutation loop stray inductance and voltage overshoot
• Integrated freewheeling diodes optimized for low reverse recovery charge (Q_rr), reducing switching losses
• Low V_CE(sat) for reduced steady-state conduction losses across the operating current range
• Isolated baseplate construction simplifies heatsink mounting and thermal management in multi-module assemblies
• Compatible with standard gate drive circuits; well-characterized switching behavior supports predictable EMI performance

With a current factory lead time of 99 weeks, sourcing the BSM100GAL120DL through standard distribution channels is not a viable option for most maintenance or production timelines. Whether you need a single replacement module for an emergency repair or a buffer stock quantity to protect against future downtime, waiting nearly two years for new production is simply not practical. ATI Accurate Technology maintains independent inventory of hard-to-find and long-lead-time IGBT modules precisely for situations like this, providing new OEM product when and where it is needed.

ATI Accurate Technology is headquartered in Palmetto, Florida, and specializes in IGBTs, thyristors, diodes, and rectifier modules — including obsolete and allocated parts. Orders placed before 5PM EST ship same day. Contact our team directly for real-time availability, volume pricing, and technical support: 239-734-7566 or sales@igbts.us. We support OEMs, MRO buyers, and integrators who need dependable access to critical power semiconductor inventory.
