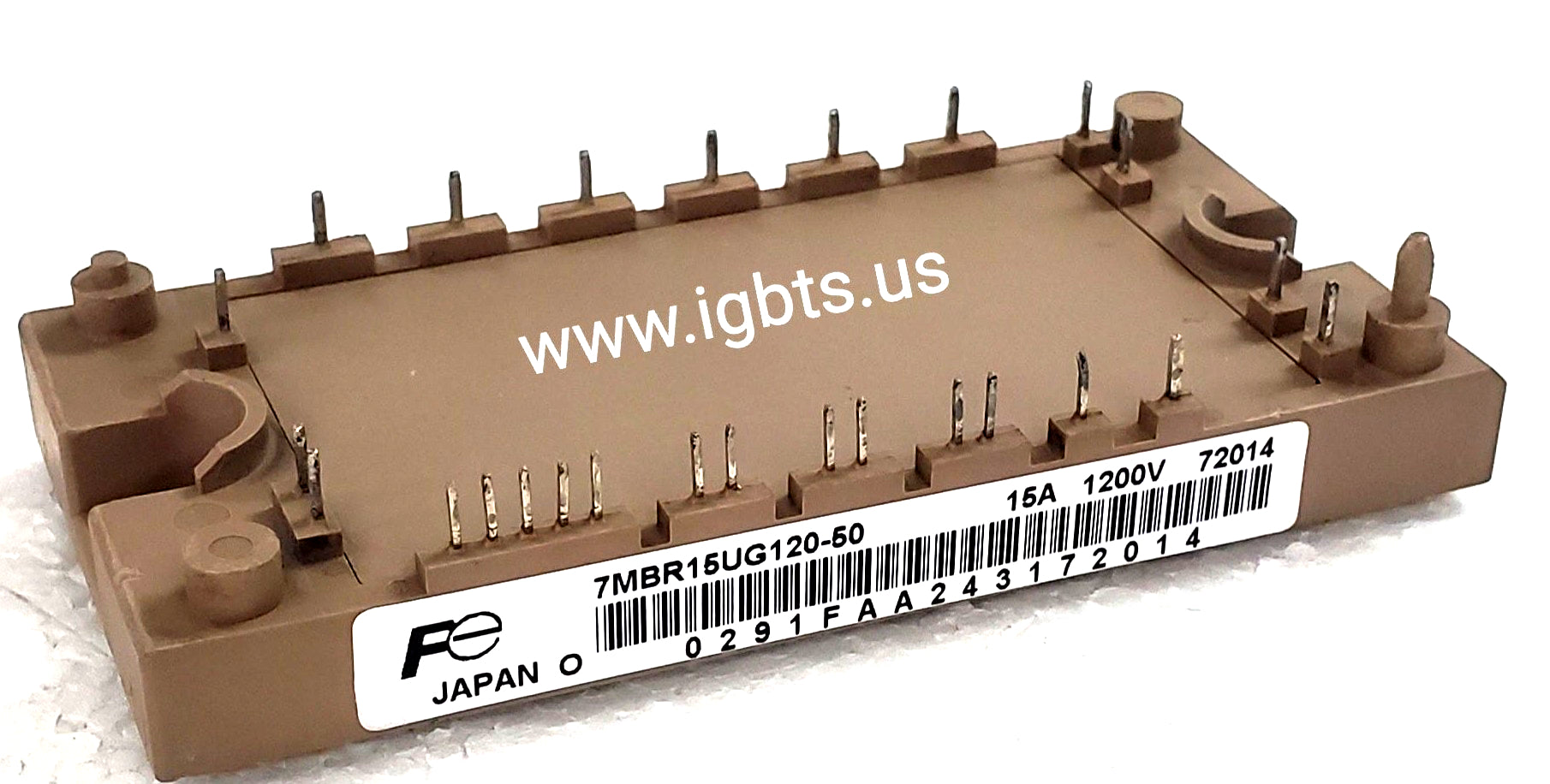

The 7MBR15UG120-50 is a Fuji Electric IGBT module from the UG series, offering a 1200V blocking voltage and 15A continuous collector current. This 7-pack IGBT module integrates multiple switching elements in a single compact package, making it an efficient solution for three-phase inverter topologies used in industrial motor drives, power supplies, and energy conversion systems. The UG series is recognized for its low switching losses, fast recovery characteristics, and robust thermal performance, making it well-suited for demanding switching applications.

This module is commonly deployed in variable frequency drives (VFDs), servo amplifiers, uninterruptible power supplies (UPS), solar inverters, and industrial automation equipment. The 1200V rating provides a comfortable safety margin in applications powered from standard three-phase AC lines, while the 15A current rating supports a wide range of fractional to small horsepower motor drive designs. Its integrated freewheeling diodes reduce external component count and simplify circuit design.

Quick Reference: 7MBR15UG120-50

Key Features:

• 1200V collector-emitter voltage (VCES) for robust margin in AC line-powered designs
• 15A continuous collector current suitable for compact inverter and drive applications
• 7-in-one IGBT configuration simplifies PCB layout and reduces component count
• Integrated freewheeling diodes for complete inverter phase leg functionality
• Low saturation voltage (VCE(sat)) minimizes conduction losses and heat generation
• Compact module footprint compatible with standard Fuji mounting configurations

Sourcing IGBT modules like the 7MBR15UG120-50 can be challenging due to long lead times and limited distributor inventory, particularly for Fuji UG-series components. ATI Accurate Technology maintains stock of hard-to-find and long-lead-time power semiconductors, ensuring fast access to critical components for OEMs, repair depots, and system integrators who cannot afford extended downtime. Whether you need a single unit for an urgent repair or a larger quantity for a production run, ATI can fulfill your requirements quickly and reliably.

Contact ATI Accurate Technology today to order the 7MBR15UG120-50. Call us at 239-734-7566, email sales@igbts.us, or visit igbts.us to place your order. Orders received before 5PM EST qualify for same-day shipping, getting critical components to you faster and keeping your projects on schedule.
