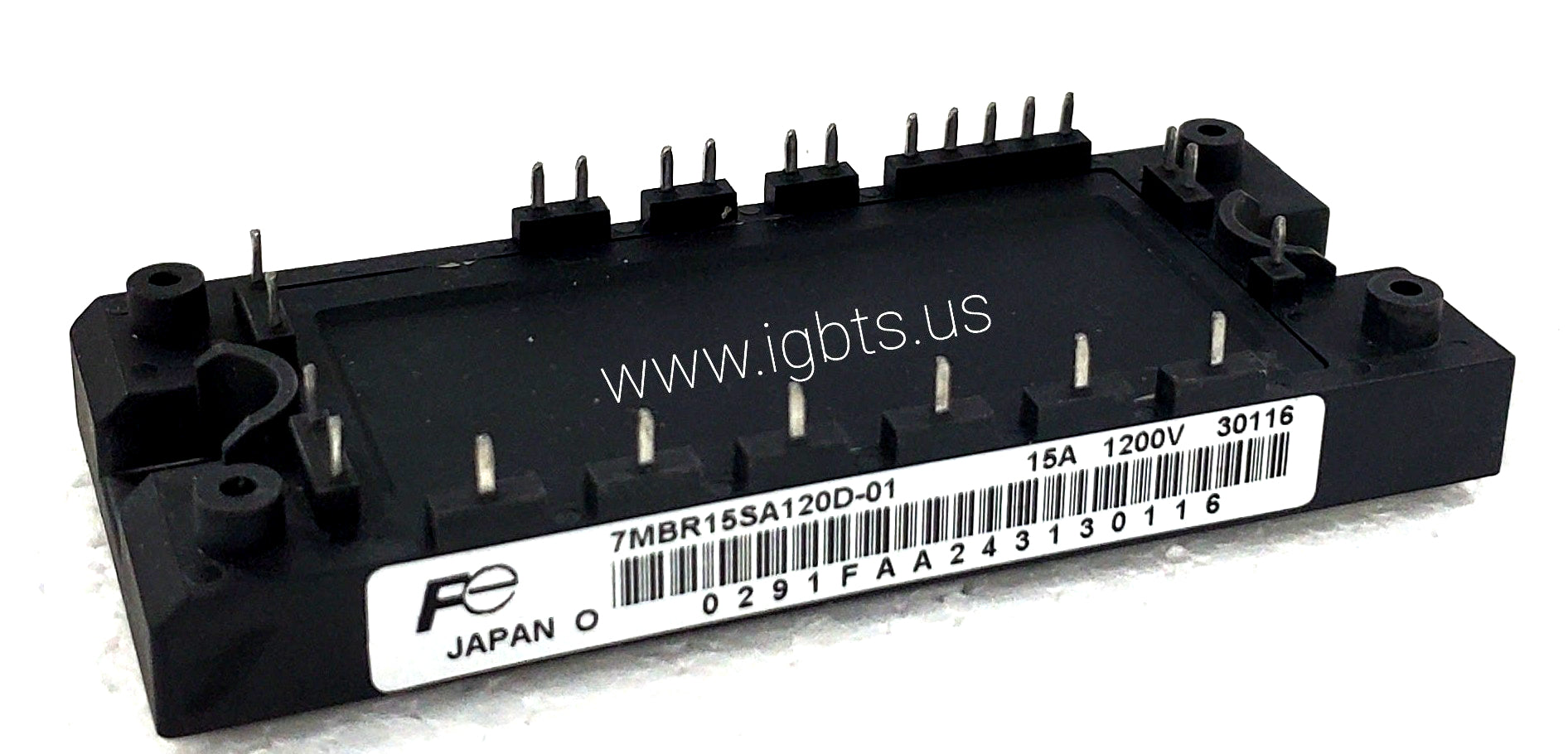

The Fuji 7MBR15SA120D-01 is a 1200V, 15A IGBT power module from Fuji Electric's SA-series line, designed for high-efficiency switching in industrial power conversion equipment. Built on Fuji's established low-saturation-voltage IGBT technology, this module integrates fast-recovery freewheeling diodes to minimize switching losses and thermal stress. Its compact, industry-standard footprint simplifies drop-in replacement in existing designs, and its robust isolated base plate construction supports reliable operation across wide thermal cycling ranges commonly encountered in industrial environments.

The 7MBR15SA120D-01 is well suited for AC motor drives, servo amplifiers, UPS systems, and industrial inverters where reliable 1200V blocking voltage and low conduction losses are essential. It sees frequent deployment in CNC machine tool drives, HVAC variable frequency drives, solar inverter auxiliary circuits, and general-purpose industrial inverter platforms. Maintenance engineers replacing aging modules in legacy equipment will find this part's pinout and mechanical envelope compatible with a broad range of fielded systems originally designed around Fuji's SA-series module family.

Quick Reference: 7MBR15SA120D-01

Key Features of the 7MBR15SA120D-01:

• 1200V collector-emitter breakdown voltage (VCES) for high-voltage industrial bus compatibility
• 15A continuous collector current rating suitable for fractional-to-mid-range drive platforms
• Integrated fast-recovery freewheeling diodes reduce external component count and switching-related EMI
• Low VCE(sat) characteristic minimizes conduction losses and reduces heatsink thermal requirements
• Isolated copper base plate construction supports standard thermal interface mounting to industry-common heatsink profiles
• Fuji SA-series process technology delivers consistent gate threshold characteristics and tight parameter distribution across production lots

With a current factory lead time of 99 weeks, the 7MBR15SA120D-01 represents exactly the kind of long-lead, allocation-constrained component that can halt production lines or delay critical equipment repairs. Procurement teams managing MRO inventories or planning new builds relying on this module cannot count on ordering to demand. Obsolescence risk is real for SA-series Fuji modules as the product family matures, making available stock increasingly difficult to source through standard distribution channels. Securing units from an experienced specialist with verified inventory is the lowest-risk path forward.

ATI Accurate Technology, based in Palmetto, Florida, stocks the 7MBR15SA120D-01 as new OEM product ready for same-day shipment on orders placed before 5PM EST. We specialize in hard-to-find, long-lead-time, and obsolete power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Volume pricing is available for larger quantity requirements. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability and discuss pricing.
