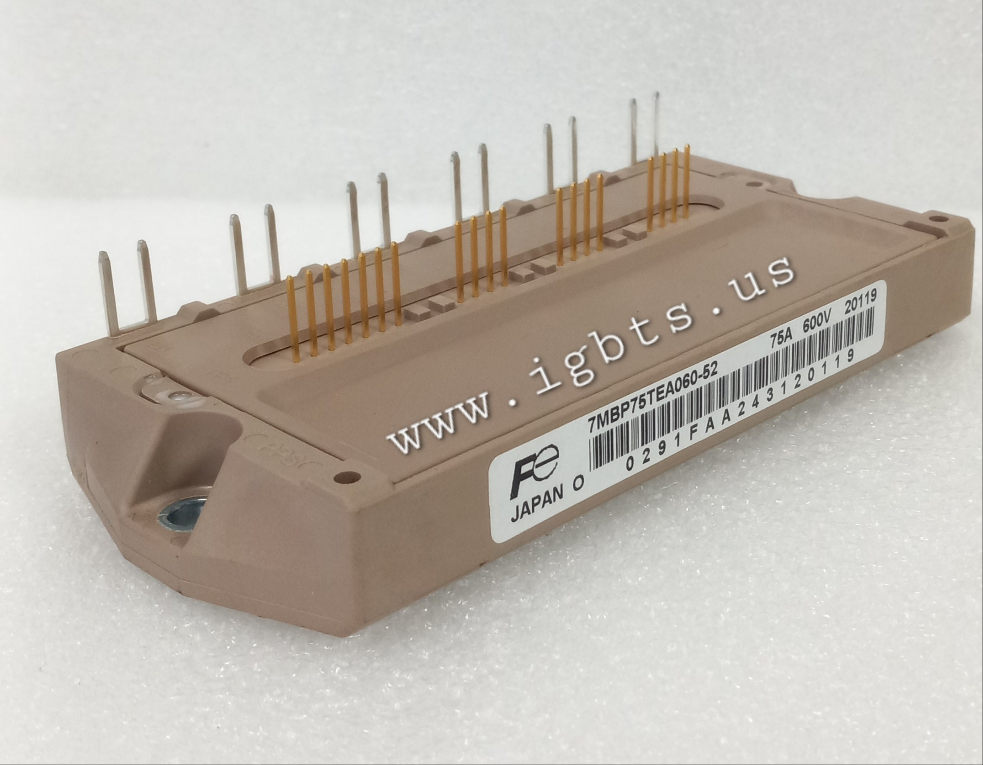

The Fuji 7MBP75TEA060-52 is a 600V, 75A 7-pack IGBT module engineered for three-phase PWM inverter topologies commonly found in variable frequency drives, servo amplifiers, and industrial motor control systems. Part of Fuji's TEA-series platform, this module combines an optimized IGBT chip design with integrated freewheeling diodes in a compact, thermally efficient package. Its 7-pack configuration — six inverter IGBTs plus one brake chopper — simplifies power stage design and reduces PCB real estate, making it a preferred solution for drive OEMs and system integrators working within tight mechanical envelopes.

The 7MBP75TEA060-52 sees widespread deployment across industrial automation platforms including AC servo drives, CNC spindle controllers, elevator drives, pump and fan VFDs, and regenerative braking systems. Its 600V blocking voltage and 75A continuous current rating position it squarely in the mid-power range suitable for machinery operating on 380–480VAC three-phase lines. Renewable energy inverters, UPS systems, and induction heating equipment also leverage this module's switching characteristics and low saturation voltage to maximize conversion efficiency and reduce thermal management overhead.

Quick Reference: 7MBP75TEA060-52

Key Features of the 7MBP75TEA060-52:

• 600V collector-emitter voltage (VCES) with 75A continuous collector current for mid-power three-phase drive applications
• 7-pack topology integrates six inverter IGBTs plus one brake chopper IGBT with co-packaged freewheeling diodes
• Low VCE(sat) characteristic reduces conduction losses and lowers steady-state heat dissipation across the full load range
• Isolated baseplate construction provides electrical isolation between the power circuit and heatsink, simplifying thermal assembly compliance
• Gate drive compatible with standard Fuji TEA-series drive boards, enabling drop-in replacement in existing drive platforms
• Designed for high-frequency PWM switching, supporting carrier frequencies typical in servo and vector control applications

With a factory lead time of 99 weeks for new production, procurement teams relying solely on the Fuji supply chain face serious exposure to unplanned downtime and project delays. Whether you're maintaining a fleet of aging drives, supporting an OEM service contract, or sourcing components for a production run that can't wait two years, holding inventory of the 7MBP75TEA060-52 is a liability risk. ATI Accurate Technology specializes in exactly this challenge — stocking hard-to-find, long-lead-time, and obsolete power semiconductors so your operations don't stall waiting on a factory queue.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders received before 5PM EST. The 7MBP75TEA060-52 is in stock as new OEM and ready to ship today. Contact our power semiconductor specialists for volume pricing, cross-reference support, or technical questions. Call 239-734-7566 or email sales@igbts.us — we're here to keep your systems running.
