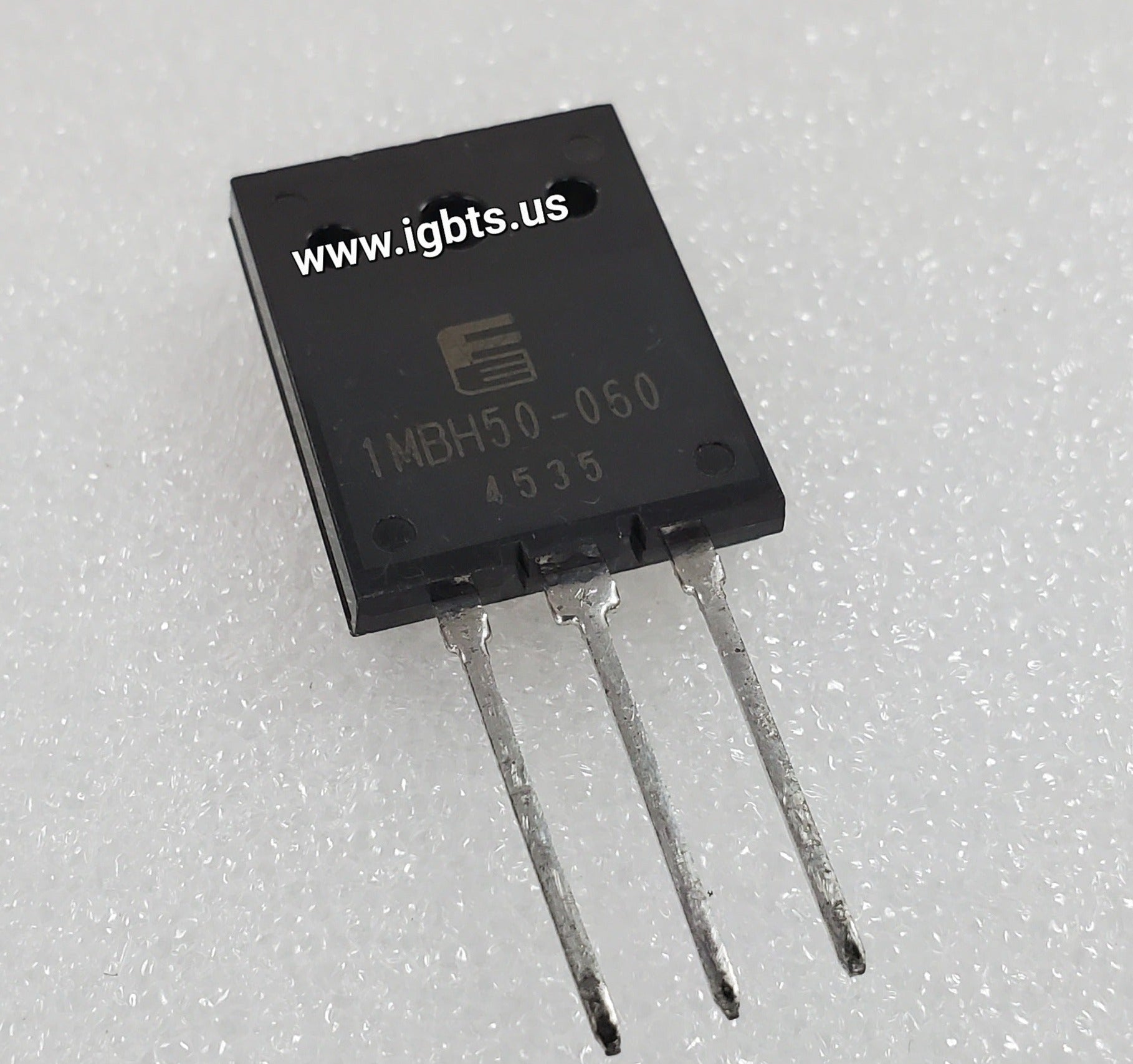

The Fuji 1MBH50-060 is a single-configuration IGBT module delivering a 50A continuous collector current rating and a 600V blocking voltage capability. Built on Fuji Electric's proven IGBT technology, this module integrates the switching transistor and inverse parallel freewheeling diode within a standard power module housing. The design targets low conduction losses and controlled switching characteristics, making it well suited for medium-power conversion stages where efficiency, thermal stability, and switching speed are primary engineering concerns. Its robust package construction supports reliable mounting to heatsink assemblies common in industrial drive and inverter platforms.

The 1MBH50-060 sees broad deployment across industrial motor drive systems, variable frequency drives (VFDs), UPS inverters, servo amplifiers, and switched-mode power supply stages operating from standard 400V AC line inputs. Its 600V rating provides adequate headroom over rectified three-phase and single-phase bus voltages, while the 50A current rating covers a practical range of fractional to low-horsepower motor control applications. Welding equipment, induction heating systems, and solar inverter designs in this power class also leverage this module where a discrete single-switch topology is preferred over half-bridge or full-bridge configurations.

Quick Reference: 1MBH50-060

Key Features of the 1MBH50-060:

• Single-switch IGBT configuration with integrated inverse parallel freewheeling diode for simplified circuit design
• 600V VCES blocking voltage with adequate derating margin for 400V AC bus applications
• 50A IC continuous current rating suitable for low-to-medium horsepower drive and inverter stages
• Low saturation voltage (VCE(sat)) characteristic minimizes conduction losses and reduces heatsink thermal requirements
• Standard power module footprint with isolated baseplate for direct heatsink mounting and system-level thermal management
• Designed for compatibility with standard IGBT gate driver circuits operating at 15V / -8V or similar drive configurations

The 1MBH50-060 carries a factory lead time of 99 weeks on new production orders — a reality that reflects ongoing constraints in the discrete power semiconductor supply chain. For maintenance departments managing aging drive systems, or procurement teams building safety stock ahead of scheduled retrofits, waiting nearly two years for factory delivery is not operationally viable. ATI Accurate Technology maintains inventory of hard-to-find, long-lead-time, and obsolete IGBT modules precisely to bridge this gap and keep critical equipment running without extended downtime exposure.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules for industrial and commercial applications. Orders placed before 5PM EST ship same day. Contact our team directly at 239-734-7566 or sales@igbts.us for availability confirmation, datasheet support, and volume pricing on the 1MBH50-060 and related Fuji IGBT modules.
