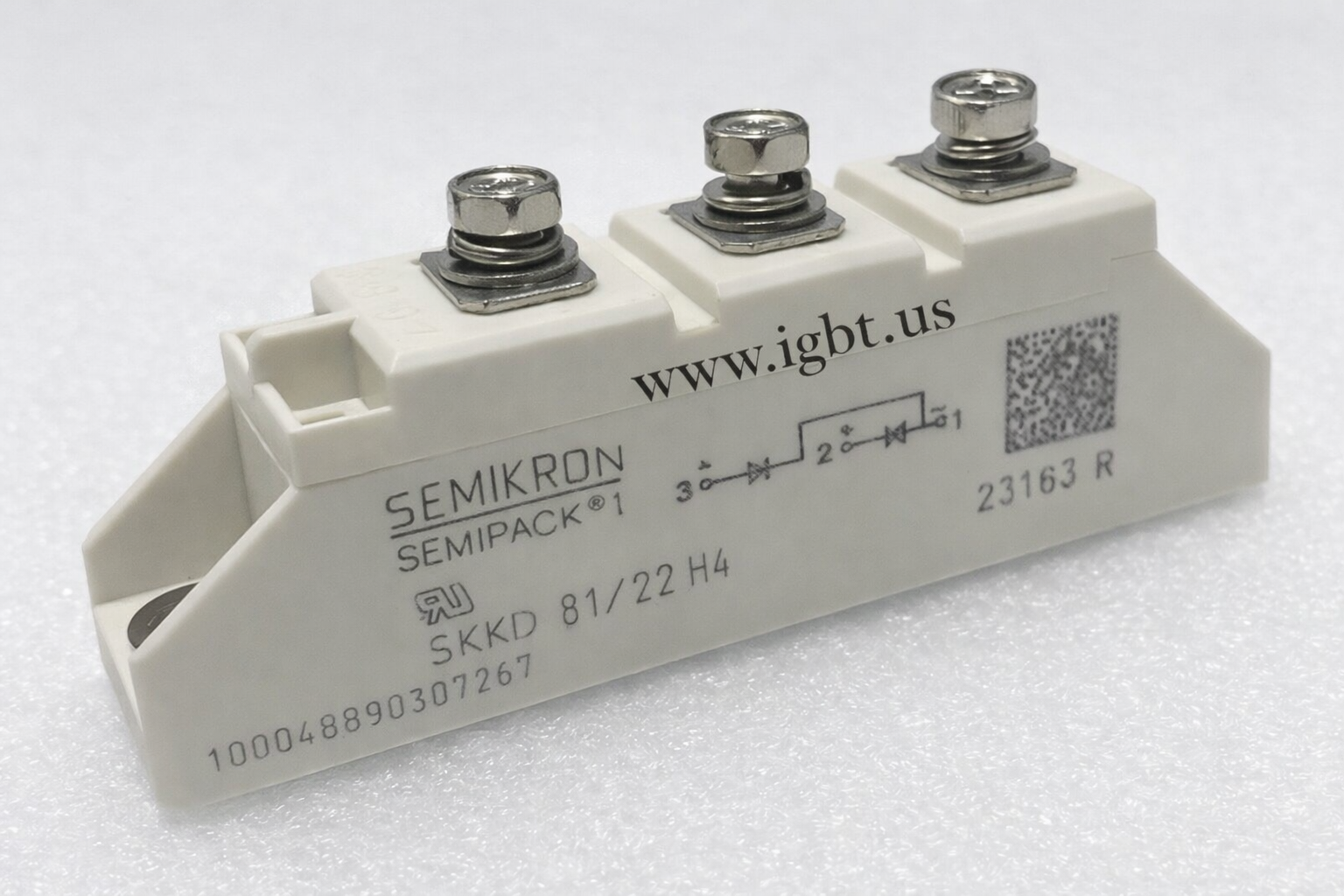

The SEMIKRON SKKD81/22H4 is a high-voltage dual diode bridge module engineered for industrial power conversion applications requiring dependable rectification at elevated voltage levels. Rated at 81A average output current and 2200V repetitive peak reverse voltage (VRRM), this module is housed in SEMIKRON's industry-standard SKKDxx H4 package, offering excellent thermal performance and a secure screw-terminal interface. It is designed to meet the rigorous demands of continuous-duty industrial environments where thermal cycling, high dV/dt, and transient overvoltage conditions are routine operational factors.

The SKKD81/22H4 is widely deployed in industrial variable-frequency drives (VFDs), regenerative DC bus systems, industrial power supplies, UPS front-end rectifiers, welding equipment, and crane or hoist drive systems. Its 2200V voltage rating makes it particularly well-suited for high-line three-phase input applications and medium-voltage drive platforms where standard 1600V or 1800V modules do not provide adequate safety margin. OEM equipment manufacturers and MRO teams supporting legacy drive systems frequently specify this module as a direct replacement in SEMIKRON-based power stacks.

Quick Reference: SKKD81/22H4

Key Features of the SKKD81/22H4:

• 2200V VRRM rating provides robust overvoltage margin for high-line three-phase and medium-voltage rectifier designs
• 81A average forward current (IFAV) supports continuous heavy-duty industrial duty cycles with appropriate heatsinking
• Dual diode configuration in a compact SKKDxx H4 package simplifies PCB layout and bus bar integration in power stacks
• Industry-standard base-plate mounting with isolated copper base ensures low thermal resistance and compatibility with standard SEMIKRON heatsink systems
• Low forward voltage drop (VF) minimizes conduction losses and reduces thermal stress at rated current
• Designed to SEMIKRON's proven H4 platform, ensuring dimensional and pin-out interchangeability with predecessor modules in existing equipment

With a factory lead time currently exceeding 99 weeks for new production, the SKKD81/22H4 presents a real procurement challenge for maintenance teams managing drive system uptime and OEMs managing production schedules. Extended SEMIKRON lead times on high-voltage diode modules are driven by constrained wafer capacity and raw material availability — a pattern affecting the broader power semiconductor market. ATI Accurate Technology actively maintains inventory positions and distributor network relationships to help customers bridge these gaps, often holding stock or locating units well ahead of the factory queue. Contact ATI early to confirm availability and lock in pricing before lead times extend further.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, diodes, thyristors, and rectifier modules from leading manufacturers including SEMIKRON. We ship same-day on orders placed before 5PM EST and offer competitive volume pricing for MRO and OEM customers. Call us at 239-734-7566 or email sales@igbts.us to check availability on the SKKD81/22H4 and discuss your project requirements today.
